Article Summary
Tesla's mega casting technology, which replaces multiple components with single-piece aluminum parts, reduces Model Y repair costs by over £2,000 compared to traditional steel vehicles, according to a two-year study by Thatcham Research. The innovation also delivers environmental benefits by keeping more vehicles on the road rather than being scrapped.
- Cost savings: Partial repairs cost more than £2,000 less than equivalent Model 3 steel construction, with full replacements saving hundreds of pounds
- Component consolidation: The mega cast rear chassis replaces approximately 70 separate components with a single aluminum part weighing over 100 kilograms
- Durability findings: Model Y withstood low-speed 15km/h impacts without structural damage; medium-speed 25km/h impacts required full replacement at competitive repair costs of £716
- Industry adoption: Toyota, Volkswagen, Volvo, and Hyundai are implementing mega casting technology in upcoming vehicle models
- Environmental impact: Fewer vehicles are written off after collisions, extending useful life and reducing lifecycle carbon emissions

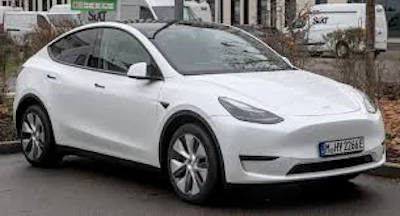

Toronto, Ontario -- A new manufacturing technique employed by Tesla in the construction of its Model Y is making it less expensive to repair the vehicles, a new study has found.
The U.K.-based firm Thatcham Research says Tesla’s use of mega casting in the Model Y could help make repairs cheaper than conventional steel structures, easing insurer concerns that the technology might drive up costs.
The findings follow a two-year study at the organization’s Berkshire headquarters, where crash tests, damage assessments and repair trials were carried out using rear impacts on the Model Y’s one-piece aluminum rear floor section. The work, conducted with input from Allianz Centre for Technology in Germany and UK insurers’ claims data, showed repair bills consistently lower than vehicles with traditional multi-piece steel construction.
A mega cast, or mega casting, refers to a manufacturing technique to create large, single-piece components through high-pressure die casting machines. In this process, molten metal -- in this and most cases aluminum -- is injected into a high-pressure mould, transforming it rapidly into solid, near-net-shape components.
Operating under extremely high pressure, which typically ranges from several hundred to several thousand psi, HPDC ensures quick and efficient filling of the mould. This results in high-quality parts that exhibit tight tolerances and an excellent surface finish. After casting, the components undergo trimming and laser cutting to swiftly remove any excess material. The mega cast technique is practical for creating large, geometrically complex metal components with high precision.
The Model Y’s mega cast rear chassis replaces about 70 separate components with a single aluminum part that weighs more than 100 kilograms and stretches almost the full width of the vehicle, covering the rear suspension towers through to the load floor. Tesla uses one of the largest casting machines in the automotive sector to create the section, measuring roughly two metres long by one and a half metres wide. By eliminating welds and joints, the process cuts production complexity, improves rigidity and reduces both cost and environmental impact.
Thatcham Research found that partial replacements were more than £2,000 (roughly $3,700) cheaper than the equivalent Model 3 steel construction, and even full replacements saved hundreds of pounds.
“Our research demonstrates that mega cast technology when properly implemented with comprehensive repair guidelines, can deliver significant benefits for insurers, consumers and the environment,” said Richard Billyeals, chief research and operations officer at Thatcham Research.
Tesla’s inclusion of replaceable rear rail assemblies costing £31 ($55) each was highlighted as a key factor in controlling costs.
“Without this provision of reasonably priced partial and full replacement parts and the associated repair procedures, our findings would have been very different,” said Darren Bright, principal engineer at Thatcham Research.
The organization noted Tesla’s repair guidelines have set an industry benchmark for mega cast repairability, though it identified technical gaps around non-destructive testing and repair network capacity.
The study also revealed sustainability benefits, with fewer vehicles written off after collisions when mega casts are used. That means more cars remain on the road rather than being scrapped, extending their useful life and reducing lifecycle carbon emissions. Other manufacturers, including Toyota, Volkswagen, Volvo and Hyundai, are preparing their own mega cast implementations, with Toyota planning to replace 177 parts in its future castings and Volvo consolidating 100 parts into a single pan.
Testing showed the Model Y withstood a low-speed 15km/h impact without structural damage, while a medium-speed 25km/h test required full replacement of the mega cast due to cracking. Even in that scenario, the repair cost remained competitive at £716 ($1,330) . However, Thatcham noted that handling large cast components could challenge smaller bodyshops.
The organization said the research will inform repair guidelines, technician training and industry standards as mega casting becomes more common. A full report with technical data and recommendations is available to Thatcham Research members.
